Product Details
Aisle Air Conditioner LY-CL Series
Solutions for higher heat flow density of 5 to 10 kW single cabinet
Aisle air conditioner, cooling capacity: 12.5KW/25KW/30KW/40KW/50KW/60KW

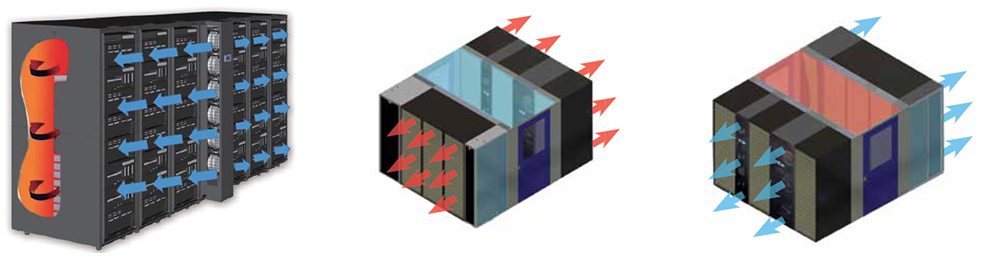

1. Multiple air supply methods
• Forward air supply
• Left and right air supply
• Air supply from the front, left, and right sides
2. Multiple cooling methods
Air cooling, water cooling, chilled water
3. High efficiency and energy saving
• EC fan reduces noise and energy consumption
• Soft start function reduces starting current
• Adjusts air supply volume based on real-time load
• Uses DC inverter scroll compressor for dynamic cooling supply
• Uses electronic expansion valve for precise cooling
• R410A environmentally friendly refrigerant
4. Advanced control
• 7-inch color touch controller, intelligent control design, with graphical user interface, the device performs self-checks to economically adjust air volume and cooling output based on environmental conditions
Structural features:
Functionally differentiated structural design
• Both front and rear panels can be opened for easy installation and daily maintenance
• General maintenance can be performed without moving the equipment, just by opening the front and rear doors
• Even during major maintenance, both ends can be disassembled separately, allowing the indoor EC fan to maintain normal air supply conditions for system maintenance
Precise positioning
• Standard operation under dry conditions, cooling output couples with load demand changes
• Solves cooling issues for concentrated heat sources
• Close to the heat source, precise air supply cooling at the workstation
• Front and rear door maintenance, convenient for maintenance
Design features
1. Frame structure
Unit dimensions are consistent with standard cabinet sizes, can be installed separately or in micro-modules, color matches cabinet color, aesthetically pleasing installation. All models have a unified modular structure, strong interchangeability of components, with sizes of 300mm and 600mm.
2. Inverter compressor
DC inverter compressor, cooling capacity can be adjusted steplessly from 30% to 100% according to demand, more in line with actual needs, higher temperature and humidity control accuracy. Inverter technology reduces frequency at low loads, improving energy efficiency and reducing compressor start-stop frequency. Uses environmentally friendly R410A refrigerant. Supports dehumidification function at minimum load, eliminating condensation risks at low loads. Supports soft start, reducing starting current and minimizing impact on the power grid.
3. Fan
Indoor air supply fan uses EC fan.
EC fan uses aviation composite material corrosion-resistant blades matched with brushless DC motor, energy-efficient, high efficiency, and low noise. EC fan soft start technology reduces the impact of fan startup on the power grid.
Aisle air conditioner indoor unit parameters
Indoor unit model LY-CLA
| Function | CLA012 | CLA025 | ||||
| Cooling only | Cooling + electric heating | Constant temperature and humidity | Air supply method | Cooling + electric heating | Constant temperature and humidity | Air supply method |
| Input power form | F/S | F/S | ||||
| Cooling capacity kW | 380Vac/3Ph/50Hz | 380Vac/3Ph/50Hz | ||||
| Apparent cooling capacity kW | 12.5 | 12.5 | 12.5 | 25 | 25 | 25 |
| Heating capacity kW | 12.5 | 12.5 | 12.5 | 25 | 25 | 25 |
| —— | Humidification capacity kg | 2 | 2 | Humidification capacity kg | 3 | 3 |
| Compressor type | Humidification capacity kg | Humidification capacity kg | 1 | Humidification capacity kg | Humidification capacity kg | 1.5 |
| Inverter compressor | Refrigerant type | Refrigerant type | ||||
| Fan type | R410A | R410A | ||||
| DC EC centrifugal fan | Air volume m3/h | Air volume m3/h | ||||
| External static pressure Pa | 3200 | 3200 | 3200 | 5000 | 5000 | 5000 |
| Standard static pressure is 20Pa, adjustable from 0-300Pa | Electric heating type | |||||
| PTC electric heater | Electric heating capacity kW | Electric heating capacity kW | ||||
| Humidification type | Humidification capacity kg | 2 | 2 | Humidification capacity kg | 3 | 3 |
| Wet film humidifier | Maximum humidification capacity kg/h | Maximum humidification capacity kg/h | ||||
| Throttling type | Humidification capacity kg | Humidification capacity kg | 1.5 | Humidification capacity kg | Humidification capacity kg | 1.5 |
| Electronic expansion valve | Air filter | Air filter | ||||
| G4 plate filter | Humidifier water inlet pipe in | Humidifier water inlet pipe in | ||||
| G 1/2 | Water inlet solenoid valve interface in | Water inlet solenoid valve interface in | ||||
| Condensate drain pipe φ mm | G3/4 | G3/4 | ||||
| Refrigerant gas pipe φ mm | 19 | 19 | ||||
| Refrigerant liquid pipe φ mm | 15.88 | 19.05 | ||||
| Maximum operating current rounded A | 9.52 | 15.88 | ||||
| Power cable specification mm² | 13 | 24 | 24 | 25 | 41 | 41 |
| 5×2.5 | 5×4 | 5×6 | 5×6 | 5×6 | 5×6 | 5×6 |
| Indoor unit dimensions | 300×1200×2000 | 300×1200×2000 | ||||
| Width×Depth×Height mm | 300×1400×2000 | 300×1400×2000 | ||||
| Weight kg | 185 | 188 | 190 | 224 | 228 | 230 |
| Outdoor unit model | CY0191-A1S | CY0451-A1S | ||||
| Quantity | 1 | 1 | ||||
Row-level air conditioning outdoor unit parameters
| Model LY-CY | 0191-A1S | 0451-A1S | 0522-AIS | 0662-A1S | 0832-A1S | 0893-A1S |
| Installation method | Vertical | Horizontal/Vertical | Horizontal/Vertical | Horizontal/Vertical | Horizontal/Vertical | Horizontal/Vertical |
| Input voltage | 220V/1P/50HZ | |||||
| Condenser fan type | Single-phase asynchronous motor | AC axial flow fan | AC axial flow fan | AC axial flow fan | AC axial flow fan | AC axial flow fan |
| + Axial flow blades | ||||||
| Maximum current A | 1.7 | 3.5 | 7 | 7 | 7 | 10 |
| Speed control method | Stepless speed regulation | Stepless speed regulation | Stepless speed regulation | Stepless speed regulation | Stepless speed regulation | Stepless speed regulation |
| 5×2.5 | 3×1.5 | 3×1.5 | 3×1.5 | 3×1.5 | 3×1.5 | 3×1.5 |
| Weight kg | 65 | 115 | 156 | 182 | 213 | 252 |
| Dimensions: Width×Depth×Height mm | 930×385×1260 | 1315×1165×545 | 2025×1015×520 | 2125×1065×545 | 2425×1165×545 | 2625×1165×545 |
