Product Details
Standard
Complies with EIA-310-E, IEC297-2, DIN41491;
PART1, DIN41494:PART7, GBT3047.2-92 standards.
Compatible with ETSI standards.
Features
• Provides various cabinet sizes and components, flexibly configured according to different application needs;
• Welded frame, modular structure design, lightweight, sturdy, and flexible;
• Tool-free installation of the top cover, multiple cable entry points, convenient for large amounts of cables to enter and exit; customizable hole brush sealing to effectively prevent foreign objects and dust from entering the cabinet;
• The rear of the cabinet is standard with two cable management brackets, facilitating cable organization and installation of devices like PDUs;
• Embedded side door, tool-free installation and removal, optional locking anti-tamper design; front and rear doors can be quickly removed without tools and swapped left and right, with an opening angle of 130°, convenient for equipment installation and maintenance;
• High-grade rotating door handle, all front and rear door locks of the entire KJ series can be opened with the same key: comes with cabinet components.
• Complete accessories, comes with snap nut fixing tools;
• Maximum static load of 1800kg;
• Surface treatment includes degreasing, pickling, rust-proof phosphating, pure water cleaning, and electrostatic spraying, complying with European ROHS environmental standards.

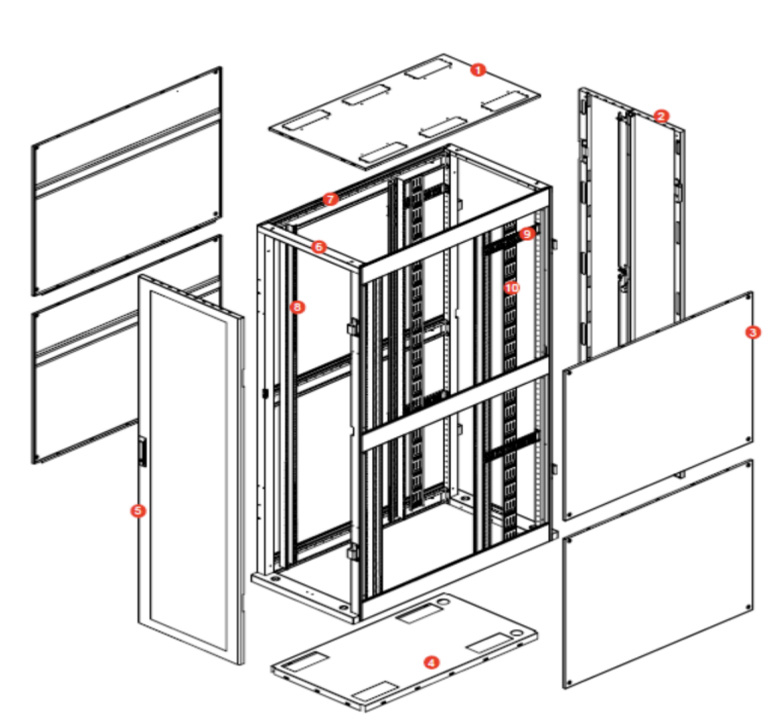

① Top cover ② Rear door ③ Side door ④ Bottom plate ⑤ Front door ⑥ Frame ⑦ Side beam ⑧ Vertical column ⑨ Perforated board ⑩ Cable management board
Configuration List
| Serial Number | Name | Quantity | Unit | Material | Surface Treatment | Remarks |
| 1 | Top Cover | 1 | Piece | SPCC Cold Rolled Plate 1.2 | Electrostatic Spraying | --- |
| 2 | Bottom Plate | 1 | Piece | SPCC Cold Rolled Plate 1.2 | Electrostatic Spraying | --- |
| 3 | Frame | 2 | Piece | SPCC Cold Rolled Plate 1.5 | Electrostatic Spraying | --- |
| 4 | Side Beam | 6 | Piece | SPCC Cold Rolled Plate 1.5 | Electrostatic Spraying | --- |
| 5 | Vertical Column | 4 | Piece | SPCC Cold Rolled Plate 2.0 | Electrostatic Spraying | --- |
| 6 | Front Door | 1 | Piece | SPCC Cold Rolled Plate 1.2 | Electrostatic Spraying | --- |
| 7 | Rear Door | 1 | Piece | SPCC Cold Rolled Plate 1.2 | Electrostatic Spraying | --- |
| 8 | Side Door | 4 | Piece | SPCC Cold Rolled Plate 0.8 | Electrostatic Spraying | --- |
| 9 | Cable Management Board | 2 | Piece | SPCC Cold Rolled Plate 1.2 | Electrostatic Spraying | Optional Accessories |
| 10 | Rotary Lock | 2 | Piece | Zinc Alloy | Black | 2 Keys |
| 11 | M6 Snap Nut Assembly | 40 | Set | --- | --- | |
| 12 | Snap Tool | 1 | Handle | --- | --- |
